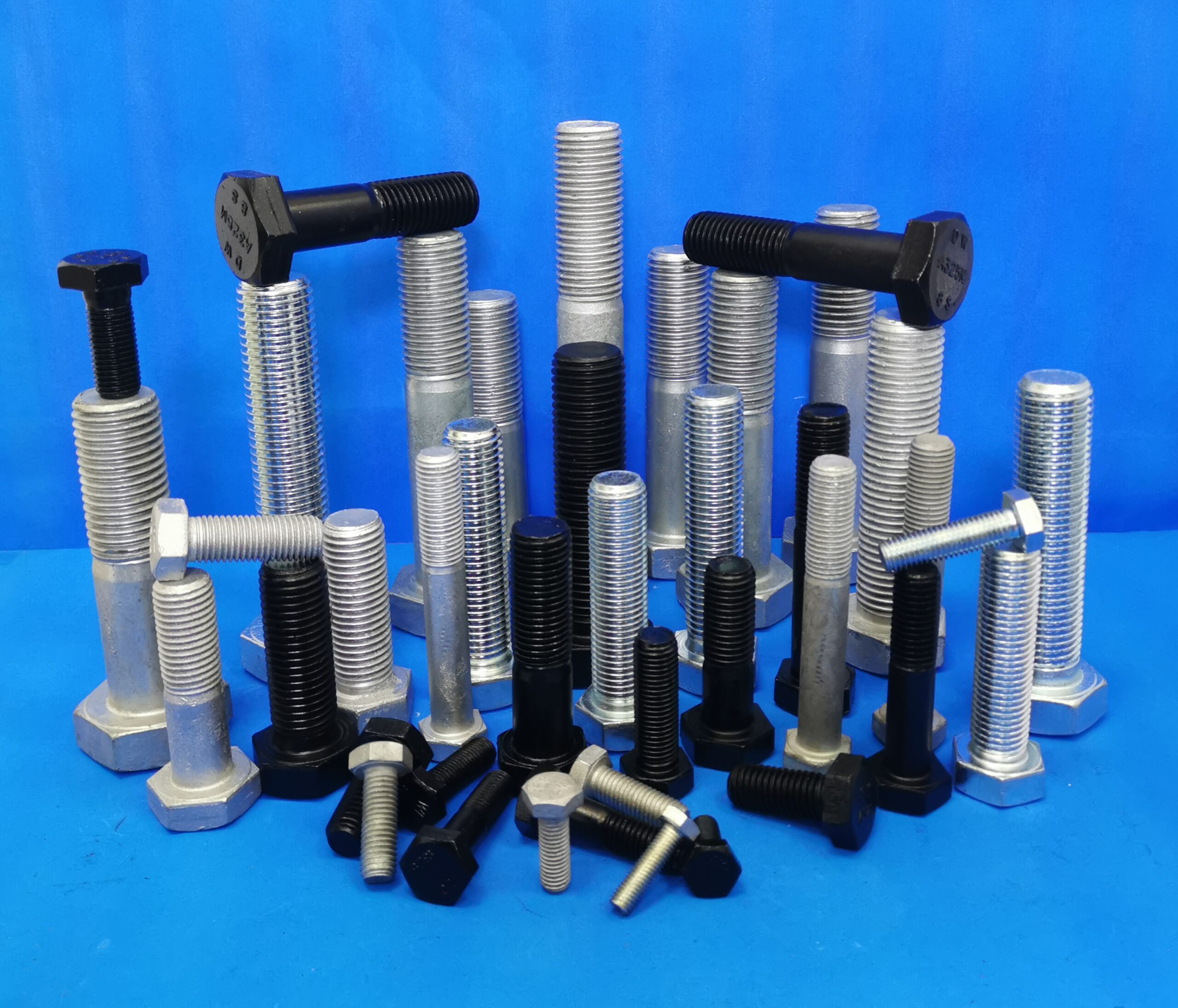

GENERAL BOLT

DIN 931 DIN 933 GENERAL BOLT

HEXAGON BOLT

STANDARD / DIMENSION:
DIN 931/DIN 933

MECHANICAL PROPERTIES:
ISO 898-1

CHEMICAL PROPERTIES:
ISO 898-1

COATING:

  • Hot dip galvanized
  • Black oxide
  • Zinc electroplated galvanized

STRUCTURAL BOLT

F10T STRUCTURAL BOLT

F10T

STANDARD / DIMENSION:
KS B 1010 / JIS B1186

MECHANICAL PROPERTIES:
KS B 1010 / JIS B1186

CHEMICAL PROPERTIES:

COATING:

  • Mechanical galvanized
  • Zinc electroplated galvanized
  • Black oxide

S10T STRUCTURAL BOLT

S10T

STANDARD / DIMENSION:
JSS II 09

MECHANICAL PROPERTIES:
JSS II 09

CHEMICAL PROPERTIES:

COATING:

  • Mechanical galvanized
  • Zinc electroplated galvanized
  • Black oxide

A325 STRUCTURAL BOLT

A325

STANDARD / DIMENSION:
ASME B18.2.6

MECHANICAL PROPERTIES:
ASTM F3125

CHEMICAL PROPERTIES:
ASTM F3125

COATING:

  • Hot dip galvanized
  • Zinc electroplated galvanized
  • Black oxide

A325M STRUCTURAL BOLT

A325M

STANDARD / DIMENSION:
ASME B18.2.6

MECHANICAL PROPERTIES:
ASTM F3125

CHEMICAL PROPERTIES:
ASTM F3125

COATING:

  • Hot dip galvanized
  • Zinc electroplated galvanized
  • Black oxide

STAINLESS STEEL BOLT

STANLESS STEEL

A2-70, A4-80

STANDARD / DIMENSION:
DIN 933

MECHANICAL PROPERTIES:
ISO 3506-1

CHEMICAL PROPERTIES:
ISO 3506-1

STUDS

HT 8.8 FULL THREAD STUD

HT 8.8 FULL THREAD STUD

STANDARD / DIMENSION:
DIN 975/DIN 976

MECHANICAL PROPERTIES:
ISO 898-1

CHEMICAL PROPERTIES:
ISO 898-1

B7 & B7M - A193 FULL THREAD STUD

B7 & B7M – A193 FULL THREAD STUD

STANDARD / DIMENSION:
B7 & B7M

MECHANICAL PROPERTIES:
ASTM A193

CHEMICAL PROPERTIES:
ASTM A193

B8 & B8M - A193 FULL THREAD STUD

B8 & B8M – A193 FULL THREAD STUD

STANDARD / DIMENSION:
B8 & B8M

MECHANICAL PROPERTIES:
ASTM A193

CHEMICAL PROPERTIES:
ASTM A193

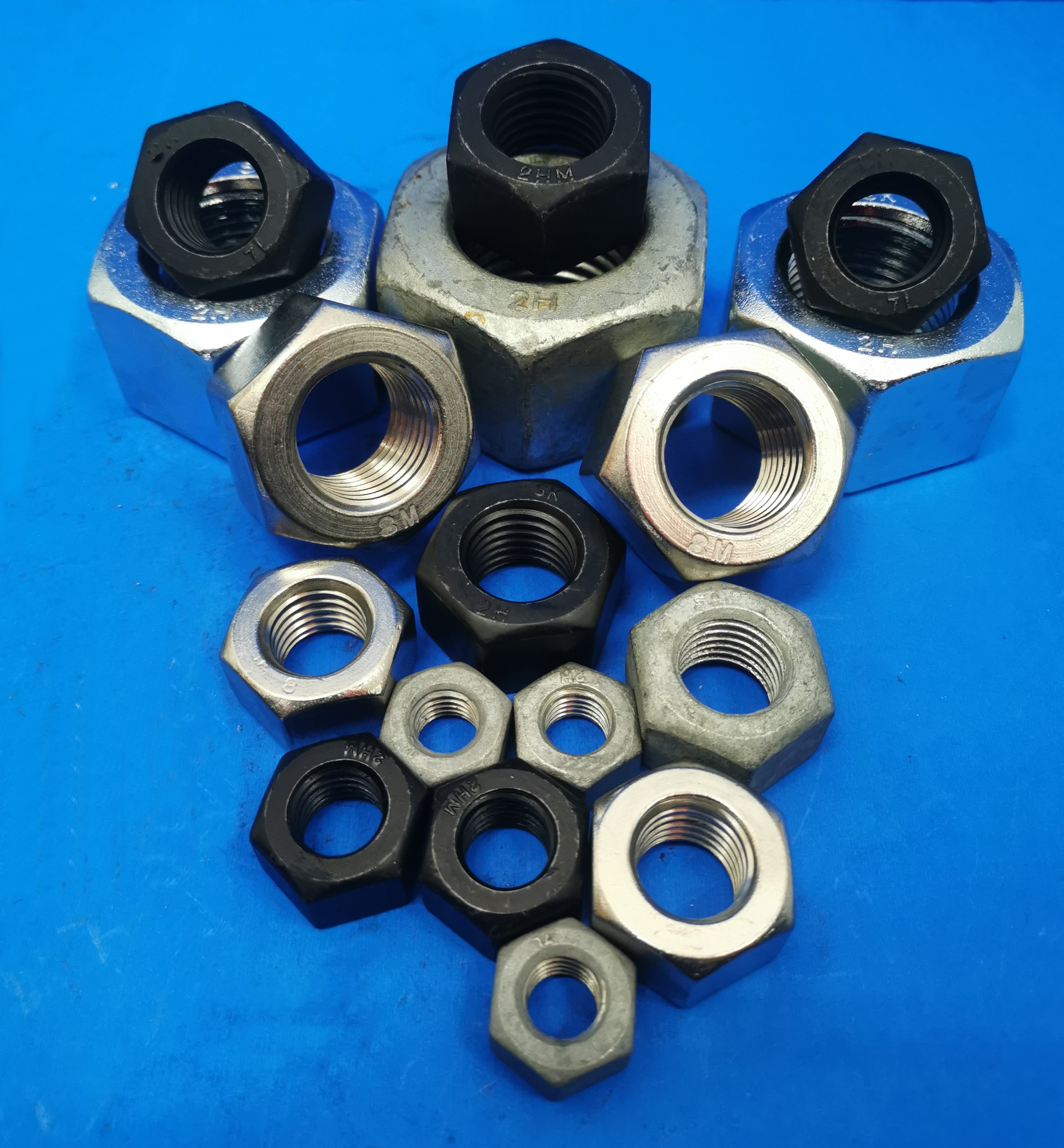

NUT

FLAT WASHER

GENERAL NUT

DIMENSION:
DIN 934
ISO 4032

CHEMICAL PROPERTIES:
ISO 3506
DIN 934

MECHANICAL PROPERTIES:
DIN 267-4
DIN 267-10
ISO 898-2

STAINLESS STEEL NUTS

STAINLESS STEEL NUTS

DIMENSION:
DIN 934

MECHANICAL PROPERTIES:
ISO 3506

CHEMICAL PROPERTIES:
ISO 3506

STRUCTURAL NUTS

STRUCTURAL NUTS

DIMENSION:
ASTM A563M

MECHANICAL PROPERTIES:
ASTM A563M

CHEMICAL PROPERTIES:
ASTM A563M

WASHERS

FLAT WASHER

FLAT WASHER

DIMENSION:
SS304 & SS316

SPRING WASHER

SPRING WASHER

DIMENSION:
M8-M20

HARDEN FLAT WASHER

HARDEN FLAT WASHER

DIMENSION:
F436

MILD STEEL FLAT WASHER

MILD STEEL FLAT WASHER

DIMENSION:
DIN 125A

SHEAR STUD

SHEAR STUD

SHEAR STUD

DIMENSION:
(AWS D1.1)

MECHANICAL PROPERTIES:
(AWS D1.1) – MM SIZE

OTHERS

COARSE SCREW

COARSE SCREW

DROP IN ANCHOR

DROP IN ANCHOR

SLEEVE ANCHOR

SLEEVE ANCHOR

WEDGE ANCHOR

WEDGE ANCHOR

CUSTOMIZE

J-SHAPE ANCHOR BOLT-ROUND BEND

J-SHAPE ANCHOR BOLT-ROUND BEND

L- SHAPE ANCHOR BOLT (45 DEGREE)

L- SHAPE ANCHOR BOLT
(45 DEGREE)

L- SHAPE ANCHOR BOLT (90 DEGREE)

L- SHAPE ANCHOR BOLT
(90 DEGREE)

SAG ROD BOTH END THREAD

SAG ROD BOTH
END THREAD

U BOLT ROUND BEND

U BOLT ROUND BEND

U BOLT SQUARE BEND

U BOLT SQUARE BEND
